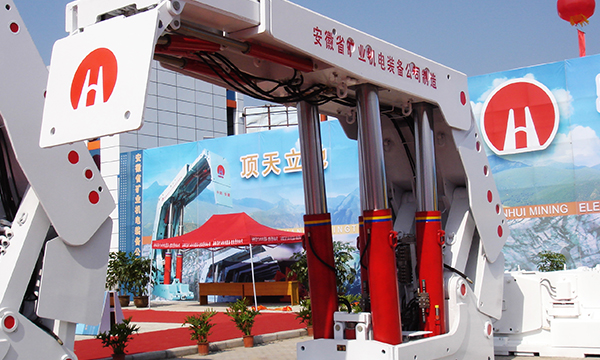

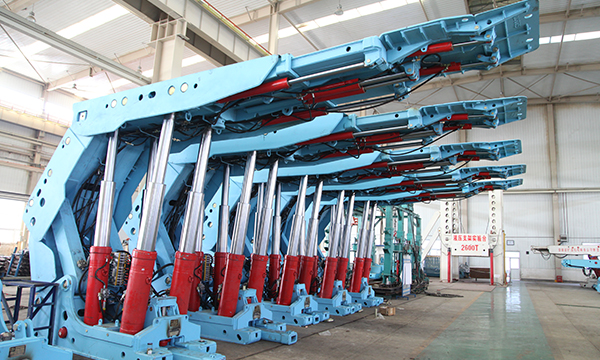

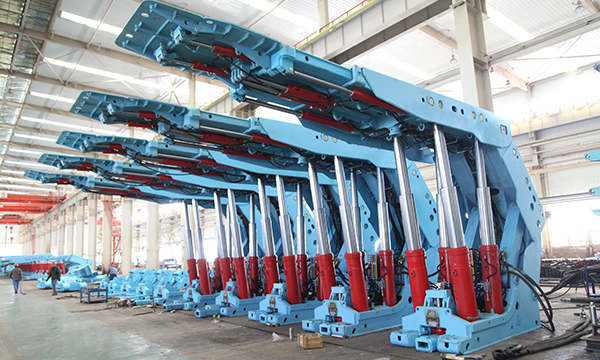

Products name：Quadrupole support

Time：2017-08-28 18:14:18

Consulting quotation

Contact: manager Jiang

Fixed:+86-0561-3126301

Fax:+86-0561-3126380

mobiles: +86-18130219456

E-mail: 1565688698@qq.com

Address: no.222, dongshan road, duji district, huaibei city, anhui province

Zip code: 235000

Product introduction

Name of stents	Specifications and models	Setting load （KN）	Working resistance （KN）	Bracket height （mm）	Support center distance （mm）	Support strength （Mpa）	To adapt to the Angle （°）	weight （T）
Lightweight roof coal support	ZF2400/16/24ZA	1808	2400	1600-2400	1250	0.60	≤20	8020
Lightweight roof coal support	ZF2400/16/24BF	1808	2400	1600-2400	1500	0.60	≤20	8.39
Coaling support	ZF3600/16/25R	3186	3600	1600-2500	1500	0.63	≤20	13.6
	ZF5000/16/27Y	3877	5000	1600-2700	1500	0.80	≤20	17.00
	ZF6000/17.5/28	4666	6000	1750-2800	1500	0.87	≤20	18.30
	ZF6800/19/38	5288	6800	1900-3800	1500	0.98	≤20	24.00
Stents for caving coal	ZFG6600/18/29H	4653	6600	1800-2900	1500	0.96		19.40
The four pillars of the transition bracket for the top coal	ZFG4200/16/25R	3186	4200	1600-2500	1500	0.65		13.46
Cover type big tilt bracket	ZYQ3400/12/28	2612	3400	1200-2800	1500	0.58	≤35	11.84
Large Angle bracket	ZQ4000/17/35	3142	4000	1700-3500	1500	0.72	20--40	15.54
Shield support	ZY3800/13/28	2954	3800	1300-2800	1500	0.64	≤20	11.32
	ZY4600/13/28	3570	4600	1300-2800	1500	0.77	≤20	13.47
	ZY4600/16/36	3570	4600	1600-3600	1500	0.76	≤15	16.80
	ZY4600/18/38	3866	4600	1800-3800	1500	0.78	≤20	17.40
	ZY5000/19/40	3866	5000	1900-4000	1500	0.82	≤15	18.15
	ZY6800/14/28	5026	6800	1400-2800	1500	1.00	≤20	17.21
	ZY6800/19/40	5186	6800	1900-4000	1500	1.04	≤20	21.9
	ZY10000/26/56	7675	10000	2600-5600	1750	1.13	≤20	38.98
	ZY11000/28/63	7675	10000	2800-6300	1750	1.29	≤20
Support shield support	ZZ3600/16/32	3142	3600	1600-3200	1500	0.65	≤20	13.02
	ZZ4000/17/35	3142	4000	1700-3500	1500	0.70	≤20	12.87
	ZZ11000/24/50	8944	11000	2400-5000	1750	1.29	≤30	38.82
Two column cover type of the transition support for the top coal	ZFG5200/19/28Y	3877	5200	1900-2800	1500	0.86	≤12	18.07
Anti - four connecting rod transition bracket	ZFG7360/21.5/34H	6276	7360	2150-3400	1650	0.94	≤25	25.55
Anti - four connecting rod - roof coal support	ZFH9600/17.4/28	7760	9600	1740-2800	1500	1.18	≤20	28.61
Screen type electro-hydraulic support bracket	ZY6800/19/40D	5186	6800	1900-4000	1500	1.04	≤20	21.9
